Specifications

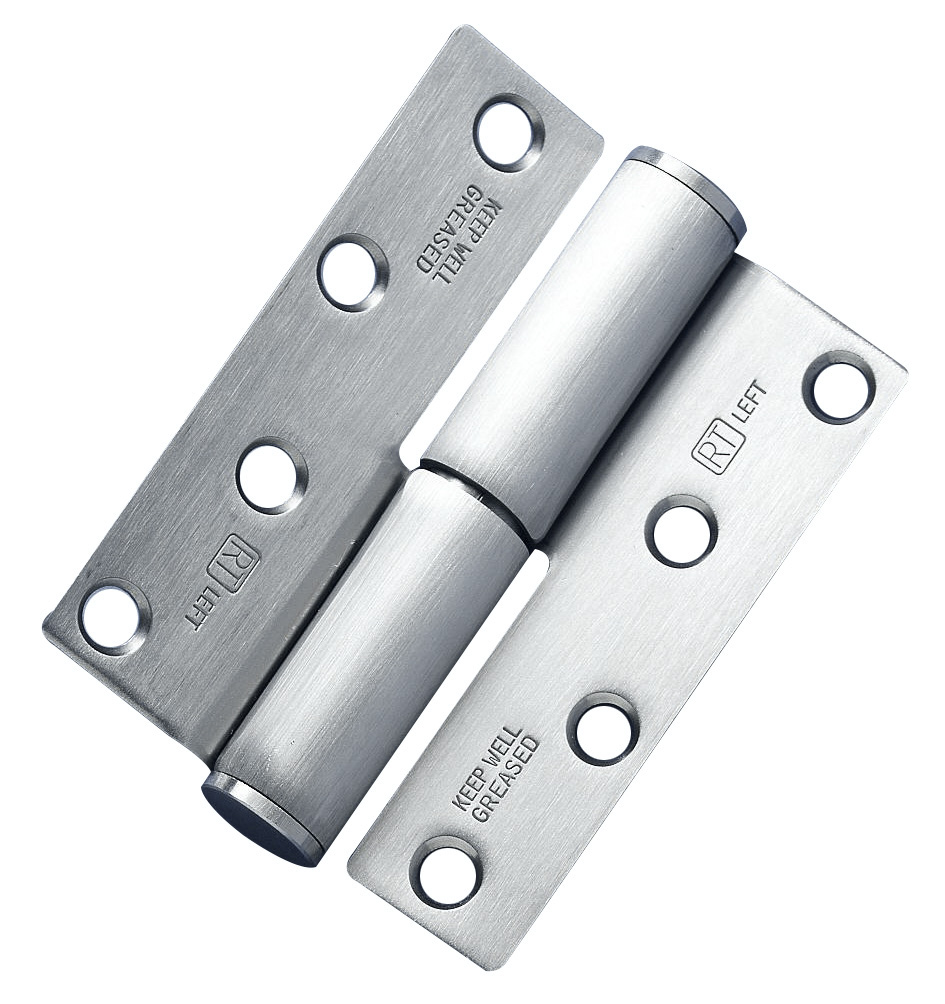

100×77×3mm 45° dwell butt hinge
These hinges cause the door to rest at 45°
Maximum adjusted door weight 50kg as standard
Minimum door thickness 29mm
c/w metric 5 × 32mm wood screws
Due to the precision engineering of our rising butt hinges, 3 or even 4 can be used per door leaf, if required
Grade 304 stainless steel (range of finishes available)
Notes:
• These butt hinges are not to be confused with the HI‑LOAD range, in that they require regular maintenance. After fitting, the cam faces and pin must be lubricated with grease supplied, following the manufacturer’s instructions.
