Specifications

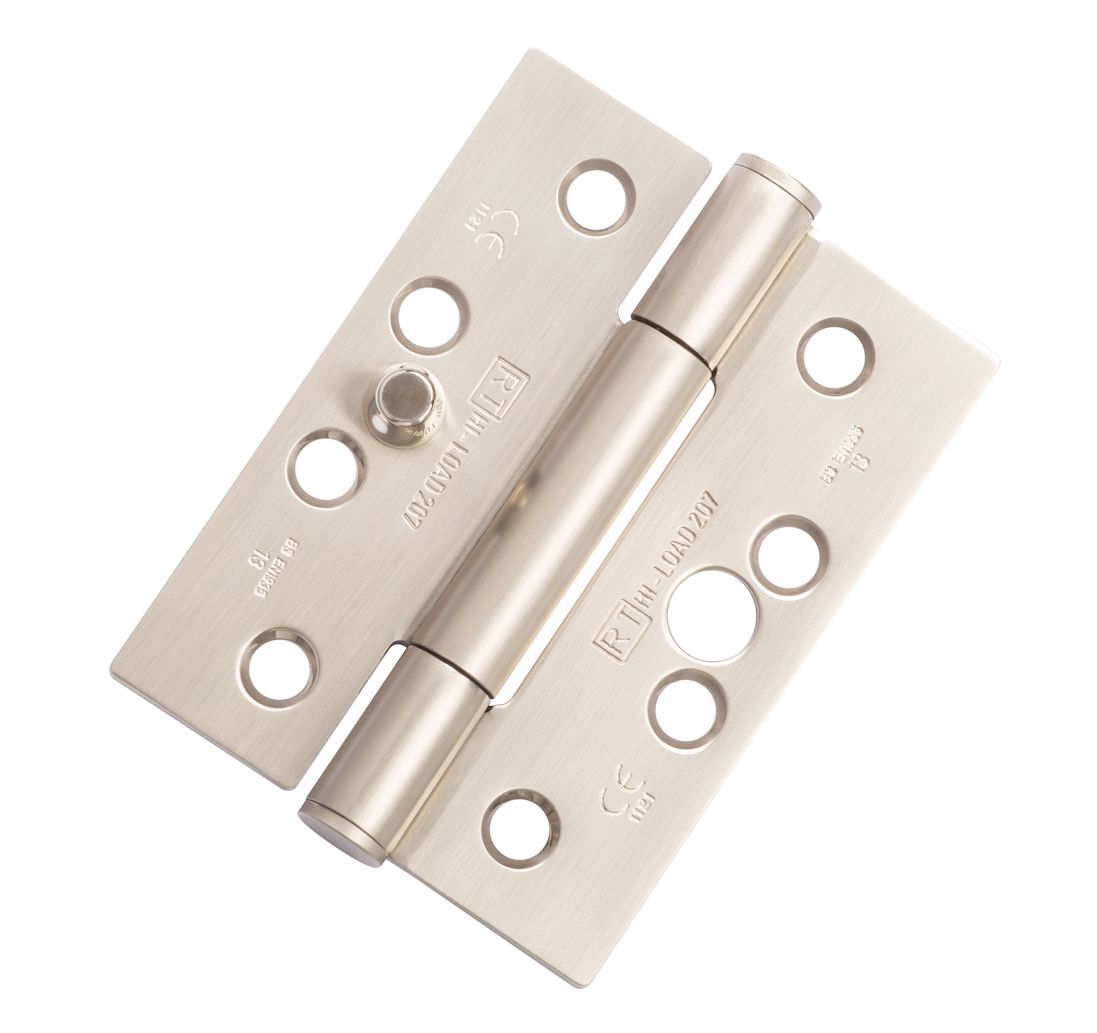

101.6×76.2×3mm Three knuckle butt hinge
Maximum adjusted door weight 120kg
To BS EN 1935 Grade 13
Minimum door thickness 35mm
Tested to over 1m cycles at 120kg
Independently tested to in excess of 2.5m cycles
Maintenance free, guaranteed for 25 years
CE Certificate No. 1121-CPR-AC0007 (SS)
Suitable for use on fire doors: Certifire approved – CF215
To be fitted with HP207 intumescent hinge pads, if being installed on fire doors
c/w metric 5 × 32mm wood screws
Unless otherwise stated, stainless steel substrate, Grade 316 stainless steel available
