Specifications

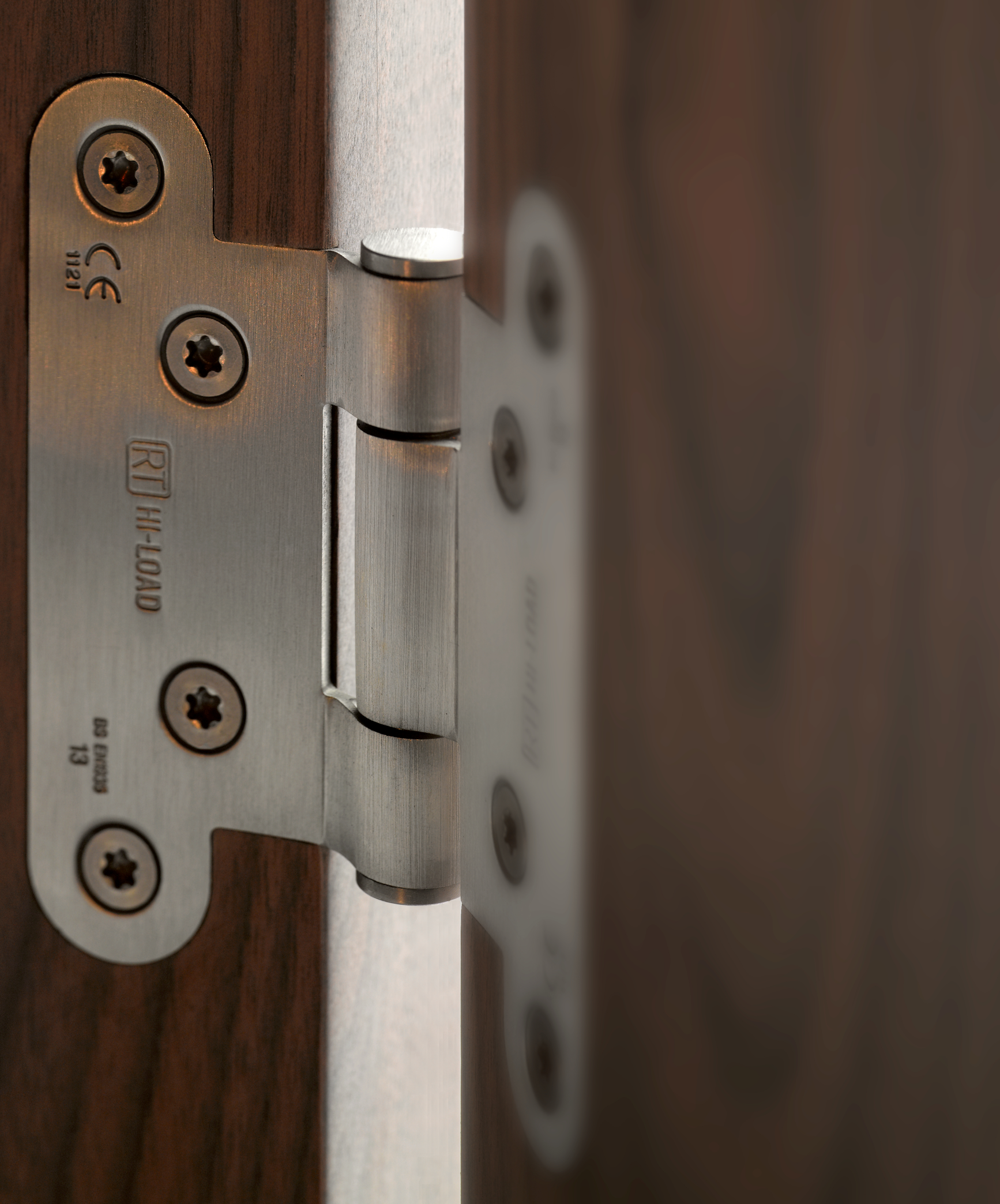

Concealed Bearing Butterfly Hinge
102x92x3.25mm Three knuckle butt hinge
Maximum adjusted door weight 120kg
To BS EN 1935 Grade 13
Minimum door thickness 44mm
Maintenance free, guaranteed for 25 years
CE Certificate No. 2812‐CPR‐AC0007 (SS)
Suitable for use on fire doors. To be fitted with HP200 intumescent hinge pads, if being installed on fire doors
c/w No10 x 1 ¼ “ Torx Head (T25) stainless wood screws
Unless otherwise stated stainless steel substrate, Grade 316 stainless steel available
