Specifications

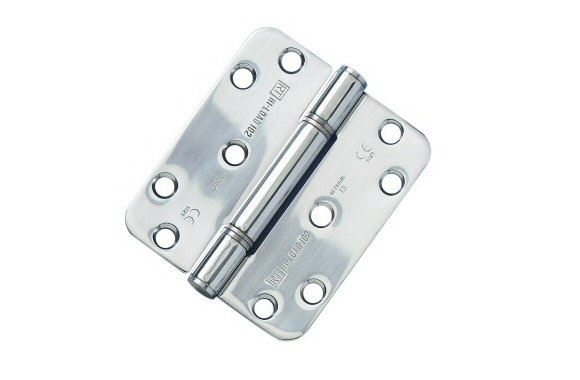

100×88×3mm Three knuckle butt hinge
Maximum adjusted door weight 120kg
To BS EN 1935 Grade 13
Minimum door thickness 44mm
Maintenance free, guaranteed for 25 years
CE Certificate No. 2812-CPR-AC0063
Suitable for use on fire doors: Certifire approved – CF209
To be fitted with HP102 intumescent hinge pads, if being installed on fire doors
c/w metric 5 × 32mm wood screws
Unless stated Mild steel substrate, Grade 304 or 316 stainless steel available
